ARM I/O Boards

Overview

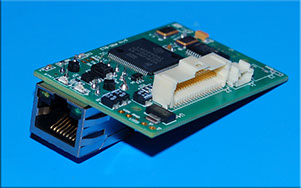

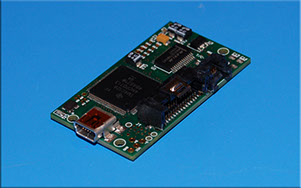

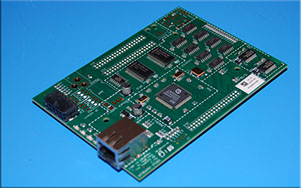

The ARM I/O boards comprise a series of small MCU boards that take analog and digital inputs and output a variety of types of signal.

Technical

Specifications

Options

Key Features



Configuration



The I/O boards can be configured and are available in many input options and many output options. The all run a real time OS with a 1 mSec clock.



Warranty



The IO boards carry a 2 year warranty.



































Technical and Environmental



Physical





















Firmware





















Environmental











Outputs













Real time Operating System (clocked 1Khz)

I/O sampled at 1KHz (1 mSec)

TCP/IP BSD socket connection/UDP (up to 400 Hz)

Web server for configuration

Boot Loader to upgrade firmware over the network

configuration programmable in EEPROM

Static or DHCP network addressing

Watch dog timer

32 bit ARM Cortex-M4 processor w/FPU (TM4C1294)

8 x ADC 12 bits (programmable 0->5, 0->10, -5-> +5 and -10 -> +10 V)

16 x ADC 12 bit 3V

84 GPIO (not isolated) 5V tolerant

3 x  32 bit counter

RJ45 Ethernet

USB Mini-B



5-28VDC supply

-40C to 105C operation

Operating Humidity

TCP/IP and UDP with POE

USB HID

RS232/RS422

CAN

A variety of boards are available.  Custom boards can be designed and built in 4-6 weeks.
